Tungsten carbide burrs for high performance, INOX, conical shape with radius end KEL

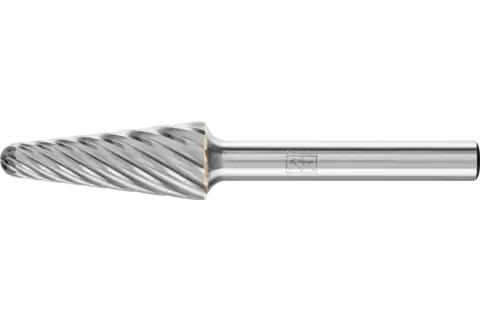

Tungsten carbide high-performance burr INOX conical shape with radius end KEL dia. 12x30 mm shank dia. 6 mm for stainless steel

Item number:: 21125282
EAN:: 4007220930496

Tungsten carbide high-performance burr INOX conical shape with radius end KEL dia. 12x30 mm shank dia. 6 mm for stainless steel 2

Tungsten carbide high-performance burr INOX conical shape with radius end KEL dia. 12x30 mm shank dia. 6 mm for stainless steel 3

Tungsten carbide high-performance burr INOX conical shape with radius end KEL dia. 12x30 mm shank dia. 6 mm for stainless steel Youtube

Technical data

Technical information

Tungsten carbide high-performance burr INOX conical shape with radius end KEL dia. 12x30 mm shank dia. 6 mm for stainless steel

Angle: 14 °
Cut: INOX
Dia. external: 12 mm
Dia. shank: 6 mm
Length, cut: 30 mm
Length, total: 70 mm
RPM from, hard non-ferrous metals: 7000 RPM
RPM from, rust and acid-resistant steels: 12000 RPM
RPM from, soft non-ferrous metals: 7000 RPM
RPM to, hard non-ferrous metals: 12000 RPM
RPM to, rust and acid-resistant steels: 16000 RPM
RPM to, soft non-ferrous metals: 12000 RPM
RPM, harte NE-Metalle: 7.000 - 12.000 RPM
RPM, rust and acid-resistant steels: 12.000 - 16.000 RPM
RPM, soft non-ferrous metals: 7.000 - 12.000 RPM
Radius corner design: 2.6 mm
Packaging unit: 1 piece

Description

With the INOX cut, PFERD has developed innovative burrs for work on stainless steel (INOX). The INOX cut is characterized by an extremely high stock removal rate on all austenitic steels, as well as rust- and acid-resistant steels. It generates significantly less vibration than a comparable cross cut.

Conical burr with round radius end according to DIN 8032.

Advantages

Excellent stock removal rate and tool life due to innovative tooth geometry.
Achieves high surface qualities through optimum chip formation.
Prevents heat discolouration in the material due to reduced heat production.
The highly accurate concentricity enables impactfree working without creating chatter marks. This considerably reduces wear on the tool and tool drive.

Recommendations for use

To prevent vibrations, place the tools on powerful drives with an elastically supported spindle wherever possible.
Observe the recommended rotational speeds.
If the smallest area of the burr diameter is being used, the recommended rotational speed can be increased accordingly.
To ensure costeffective use of burrs, use a higher rotational speed and cutting speed. Use burrs with a shank diameter of 6 mm with drives with a power output from 300 watts.

Safety notes

The very high stock removal rate can cause discolouration on the shank. This does not constitute a safety risk.

Materials that can be worked: Hard non-ferrous metal; Stainless steel (INOX); Titanium; Titanium alloys

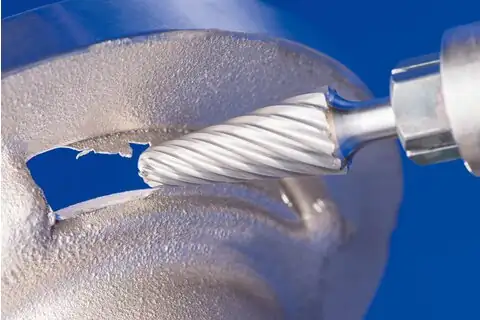

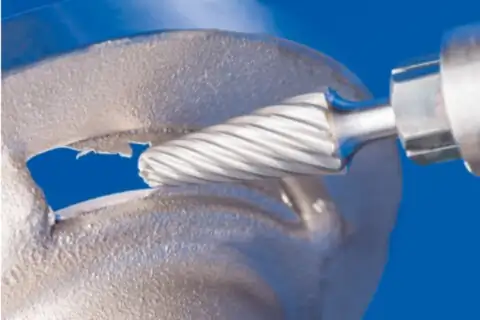

Applications: Cutting out holes; Deburring; Leveling; Milling; Milling out; Surface work; Work on weld seams

Drive types: Drive spindle; Flexible shaft drive; Robot; Stationary machines; Straight grinder; Tool machine

PFERDVALUE

PFERDEFFICIENCY

recommends burrs with the INOX cut for working for long periods with low levels of fatigue, whilst saving resources and achieving perfect results as quickly as possible.
