Tungsten carbide burrs for general use, cut 3 PLUS, inverted cone WKNS with end cut

Tungsten carbide inverted cone end cut WKNS dia. 06x07mm shank dia. 3mm Z3P universal medium cross cut

WKNS 0607/3 Z3 PLUS

Item number:: 21207683
EAN:: 4007220049730

Tungsten carbide inverted cone end cut WKNS dia. 06x07mm shank dia. 3mm Z3P universal medium cross cut 1

Tungsten carbide inverted cone end cut WKNS dia. 06x07mm shank dia. 3mm Z3P universal medium cross cut 2

Tungsten carbide inverted cone end cut WKNS dia. 06x07mm shank dia. 3mm Z3P universal medium cross cut 3

Technical data

Technical information

Tungsten carbide inverted cone end cut WKNS dia. 06x07mm shank dia. 3mm Z3P universal medium cross cut

Angle: 10 °
Cut: 3 PLUS
Dia. external: 6 mm
Dia. shank: 3 mm
Length, cut: 7 mm
Length, total: 37 mm
RPM, grey cast iron, white cast iron: 24.000 - 32.000 RPM
RPM, hardened, heat-treated steels over 1,200 N/mm²: 13.000 - 19.000 RPM
RPM, high-temperature-resistant materials: 13.000 - 24.000 RPM
RPM, rust and acid-resistant steels: 13.000 - 19.000 RPM
RPM, steels up to 1,200 N/mm²: 24.000 - 32.000 RPM
Packaging unit: 1 piece

Description

Cut 3 PLUS is cross cut and especially well-suited to machining of cast iron, steel, stainless steel (INOX), nickel-based alloys and titanium alloys. It is characterized by its high stock removal rate.

Tungsten carbide burrs for general applications are suitable for fine and coarse stock removal on the key materials used in industrial manufacturing. They provide a good stock removal rate and are not specific to a particular material.

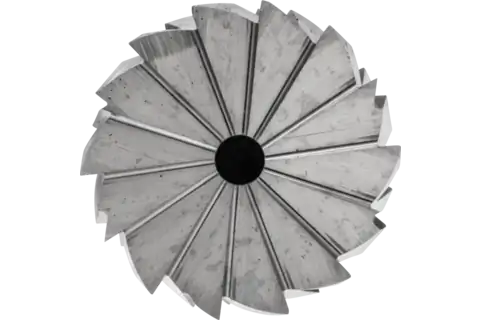

Inverted cone-shaped rotary cutter, tapered towards the shank according to DIN 8032 with cut conforming to DIN 8033. Shape WKNS with end cut. Suitable for work on hard-to-reach, reverse-side edges.

Due to their special shapes, tungsten carbide burrs for flexible work on edges achieve almost precise chamfers or radii and can also be used flexibly in hard-to-reach areas. They are mainly used in steel and aluminium construction and have been specifically designed for chamfering, deburring and rounding of edges.

Advantages

Good stock removal rate through optimum matching of tungsten carbide, geometry, cut and available coating.
Long tool life.
The highly accurate concentricity enables impactfree working without creating chatter marks. This considerably reduces wear on the tool and tool drive.
High surface quality.

Recommendations for use

If the smallest area of the burr diameter is being used, the recommended rotational speed can be increased accordingly.
To ensure costeffective use of burrs, use a higher rotational speed and cutting speed. Use burrs with a shank diameter of 3 mm with drives with a power output of 75 to 300 watts.

Materials that can be worked: Annealed cast iron; Black annealed cast iron (GTS, GJMB); Brass; Bronze; Case-hardened steels; Cast iron; Cast steel; Cobalt-based alloys; Copper; Grey/nodular cast iron (GG/GJL, GGG/GJS); Hard aluminium alloys; Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC); Hard non-ferrous metal; High-temperature-resistant materials; Nickel-based alloys (e.g. Inconell and Hastelloy); Soft aluminium alloys; Stainless steel (INOX); Steel; Steel, cast steel; Steels over 700 N/mm² (> 220 HB); Steels up to 1,200 N/mm² (< 38 HRC); Steels up to 700 N/mm² (< 220 HB); Tool steels; White annealed cast iron (GTW, GJMW); Zinc

Applications: Chamfering; Countersinking; Cutting out holes; Deburring; Leveling; Milling; Milling out; Surface work; Working on edges; Working on edges (chamfering, rounding); Work on weld seams

Drive types: Automated centres; Drive spindle; Flexible shaft drive; Straight grinder; Tool machine
