POLINOX mounted grinding wheels PNL HP

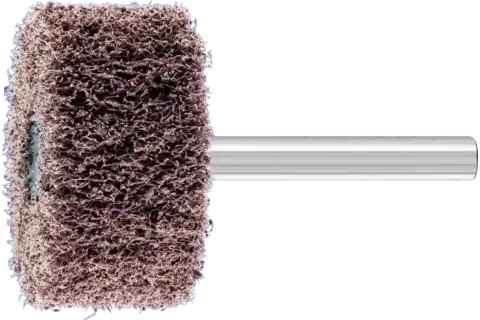

POLINOX non-woven mounted grinding wheel High Performance PNL dia. 40x20 mm shank dia. 6 mm A100 for fine grinding and finishing

PNL-HP 4020/6A100

Item number:: 44657100
EAN:: 4007220603642

New

POLINOX non-woven mounted grinding wheel High Performance PNL dia. 40x20 mm shank dia. 6 mm A100 for fine grinding and finishing 1

Technical information

POLINOX non-woven mounted grinding wheel High Performance PNL dia. 40x20 mm shank dia. 6 mm A100 for fine grinding and finishing

Abrasive: Aluminium oxide A
Dia. external: 40 mm
Dia. shank: 6 mm
Grit size: 100
Length, shank: 40
Max. RPM: 15000 RPM
RPM, optimum: 7500 RPM
Width: 20 mm
Packaging unit: 10 pieces

Description

POLINOX mounted grinding wheels HP consist of non-woven polyamide abrasive, into which abrasive grain is integrated. The non-woven abrasive material is arranged in multiple radial flaps. An extremely long tool life is achieved through the dense packing of the flaps. The tool is particularly used for surface work.

Advantages

Cool grinding and low thermal load on the workpiece.
The open structure and high flexibility of the non-woven material prevents tool clogging.
Particularly aggressive grinding.

Recommendations for use

For the best results, use at a recommended cutting speed of 10-20 m/s. This provides an ideal compromise between stock removal rate, surface quality, thermal load on the workpiece and tool wear.

Safety notes

The maximum permitted peripheral speed is 32 m/s.
For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.

Materials that can be worked: Aluminium; Brass; Bronze; Cast steel; Cobalt-based alloys; Copper; Fibre-reinforced thermosetting plastics (GRP, CRP); Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC); Nickel-based alloys (e.g. Inconell and Hastelloy); Stainless steel (INOX); Steel materials with a hardness > 54 HRC; Steels up to 1,200 N/mm² (< 38 HRC); Thermoplastics; Titanium; Titanium alloys; Zinc

Applications: Cleaning; Deburring; Roughening; Step-by-step fine grinding; Structuring (matt finishing, brush matting and satin finishing); Surface work

Drive types: Drive spindle; Flexible shaft drive; Straight grinder

PFERD TOOLS VALUE
