Mounted flap wheels

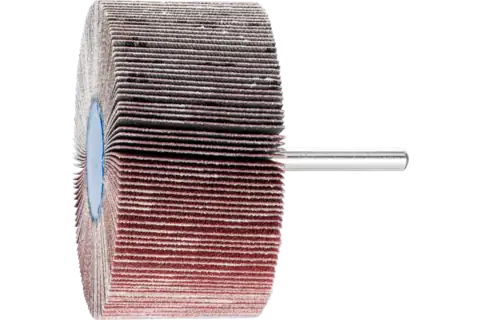

Aluminium oxide mounted flap wheel F dia. 80x40 mm shank dia. 6 mm A120 for fine grinding & finishing

Item number:
44515126
EAN:
4007220155837

Login / Register
Choose options
Abrasive
Dia. external
Dia. shank
Grit size
Width
Packaging unit
Technical information
Aluminium oxide mounted flap wheel F dia. 80x40 mm shank dia. 6 mm A120 for fine grinding & finishing

Abrasive
Aluminium oxide A
Dia. external
80 mm
Dia. shank
6 mm
Grit size
120
Length, shank
40
Max. RPM
9500 RPM
RPM, optimum
4800 RPM
Width
40 mm
Packaging unit
10 pieces
Description

On mounted flap wheels, the flaps made of coated abrasive are arranged radially around the tool axis in a fan-type structure. Their flexibility enables them to adapt perfectly to the contours of the workpiece. The abrasive grain is embedded in the sturdy, flexible cloth backing material by means of a resinoid bond.

In ISO 3919, mounted flap wheels are designated as "flap wheels with shaft".

For general applications from coarse to fine grinding.

Advantages
  • Highly flexible, enabling optimal adjustment to the contour.
  • Consistently high stock removal rate over the entire tool life as new, aggressive abrasive is constantly exposed.
  • Can be used face-down very close to edges and in corners thanks to the flat, moulded-core design.
Recommendations for use
  • Reducing the contact pressure and the peripheral speed and adding grinding oil diminishes tool wear and thermal load on the workpiece.
  • To increase the stock removal rate, it is advisable to use a coarser type of grit instead of increasing the contact pressure. This will prevent unnecessary tool wear and thermal load on the workpiece.
  • The increase in cutting speed leads to a slightly finer surface quality. Increasing the contact pressure makes the surface slightly coarser. The softer the material that is being worked on, the coarser the surface (when using the same grit size).
  • For the best results, use at a recommended cutting speed of 15-20 m/s. This provides an ideal compromise between stock removal rate, surface quality, thermal load on the workpiece and tool wear.
  • Use grinding oil that is suitable for the material in order to significantly increase the tool life and the abrasive performance of the tools.
Safety notes
  • For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.
  • The contact pressure must be significantly reduced if the specified optimum rotational speed is exceeded.
  • Safety can only be guaranteed if the clamping length is at least 15 mm and the specified maximum rotational speed is not exceeded with unsupported shank lengths.
Materials that can be worked
Aluminium
Annealed cast iron
Brass
Cast steel
Copper
Grey/nodular cast iron (GG/GJL, GGG/GJS)
Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC)
Stainless steel (INOX)
Steel materials with a hardness > 54 HRC
Steels up to 1,200 N/mm² (< 38 HRC)
Applications
Deburring
Leveling
Step-by-step fine grinding
Structuring (matt finishing, brush matting and satin finishing)
Surface work
Work on weld seams
Drive types
Drive spindle
Flexible shaft drive
Straight grinder
PFERDVALUE

PFERDERGONOMICS

recommends mounted flap wheels to sustainably reduce the vibration and noise produced during use and to improve comfort when working.
product.aggregation.prv-ergo
product.aggregation.prv-ergo
product.aggregation.prv-ergo
