Grinding wheels SG CAST+ALU ★★★☆

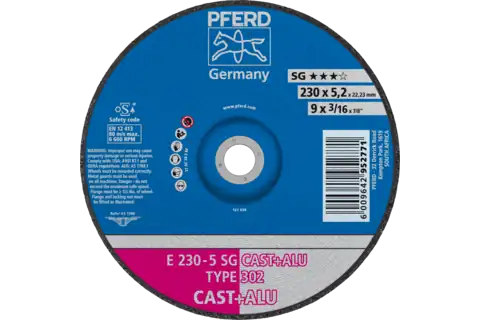

Grinding wheel E 230x5.2x22.23 mm Performance Line SG CAST+ALU for cast material/aluminium T302

E 230-5.2 SG CAST+ALU

Item number:: 69902135
EAN:: 6009642952771

Grinding wheel E 230x5.2x22.23 mm Performance Line SG CAST+ALU for cast material/aluminium T302 1

Technical data

Technical information

Grinding wheel E 230x5.2x22.23 mm Performance Line SG CAST+ALU for cast material/aluminium T302

Abrasive: AC
Dia. external: 230 mm
Dia. hole: 22.23 mm
Max. RPM: 6600 RPM
Mounting system: Centre hole (T 302)
Shape: E / 27 / T27
Width: 5.2 mm
Packaging unit: 10 pieces

Description

The broad range Performance Line SG offers a high-performance tool solution for every application and every material. Performance Line SG tools achieve optimum results with maximum economic efficiency.

For heavy-duty use in foundries and fettling shops, PFERD TOOLS offers particularly robust grinding wheels that guarantee maximum safety and achieve top performance, even under these conditions. They are optimized for use on compressed-air turbine and high-frequency angle grinders.

Grinding wheel optimized for use in foundries and fettling shops for cast iron and aluminium with high grinding performance and very good tool life.

Advantages

Very fast work progress and high economic efficiency thanks to the high grinding performance.
Very good tool life.

Recommendations for use

Ideal for work on root seams.

Materials that can be worked: Annealed cast iron; Casting scale with sand contamination and metal contamination; Cast iron; Grey/nodular cast iron (GG/GJL, GGG/GJS); Hard aluminium alloys

Applications: Chamfering; Deburring; Grouting; Surface grinding; Work on weld seams

Drive types: Angle grinder
