Diamond files for manual filing tools three square

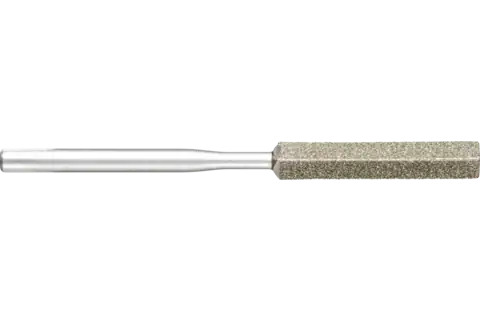

Diamond file for manual filing tool three square 4.5x4.5x60 mm shank dia. 3 mm D126 (medium) complete

DF 5375 D 126

Item number:: 15653752
EAN:: 4007220257265

Diamond file for manual filing tool three square 4.5x4.5x60 mm shank dia. 3 mm D126 (medium) complete 1

Technical data

Technical information

Diamond file for manual filing tool three square 4.5x4.5x60 mm shank dia. 3 mm D126 (medium) complete

Coating: complete
Grit size: D 126
Length, coating: 25 mm
Length, total: 60 mm
Shape: Three square
Width: 4.5 mm
Packaging unit: 1 piece

Description

Diamond files and sheets are used for tasks where conventional files fail due to the hardness of the material being worked on.

Diamond files and sheets are also used for processing hardened steel. The working temperatures are so low that no chemical wear occurs. This allows the higher hardness of the diamond grain to be exploited for a longer tool life.

Diamond files for manual filing tools are suitable for use in machines, as well as for hand filing. The shank diameter of the diamond files is 3 mm.

Recommendations for use

Apply only slight pressure to the file, especially in workpiece edge areas.
Loaded diamond files can be cleaned in kerosene or anti-static plastic cleaner with a file brush. Alternatively, ultrasonic cleaning is also possible. Often it will suffice to knock the file against a hard object.
Avoid using grease!

Ordering notes

Customer-specific tool solutions are available on request.

Materials that can be worked: Abrasive materials; Case-hardened steels; Ferrite (magnetic material); Glass; Graphite and synthetic carbon; Nickel or titanium-based superalloys; Steel materials with a hardness > 54 HRC; Technical ceramics; Tool steels; Tungsten carbide

Applications: Deburring; Finishing; Leveling; Removing oxide layers; Surface work; Working on edges; Working on edges (chamfering, rounding)

Drive types: Manual application; Manual filing tool

Downloads

Diamond files for manual filing tools three square

Diamond file for manual filing tool three square 4.5x4.5x60 mm shank dia. 3 mm D126 (medium) complete

DF 5375 D 126
